Hardware & Infrastructure Results

Dell EMC R440 Servers (×2)

Operating System: Ubuntu 24.04 LTS
Processors: 2 × Intel Xeon Gold 6152
Memory: 64 GB DDR4 @ 2666 MT/s
Network Card: Supermicro AOC-STGN-i2S
Storage: 4 × 4 TB Seagate ST40000NM016A HDD
RAID Configuration: RAID 10
RAID Controller: Dell PERC H330

Supermicro SYS-1027GR-TSF SuperServers (×6)

Operating System: Ubuntu 24.04 LTS
Processors: 2 × Intel Xeon E5-2650 v2
Memory: 192 GB DDR3 @ 1866 MT/s
Network Cards:
- Supermicro AOC-STGN-i2S
- Supermicro AOC-SGP-i4 (1 GbE)
Storage: 4 × 1 TB HDD
RAID Configuration: RAID 10
RAID Controller: Supermicro AOC-SAS2LP-H8IR

Networking Equipment

10 GbE Switch: TP-Link TL-SX3008F
1 GbE Switch: Netgear GS748Tv5
Network Cables: 8 × TP-Link TL-SM5220-1M

Physical Setup Images

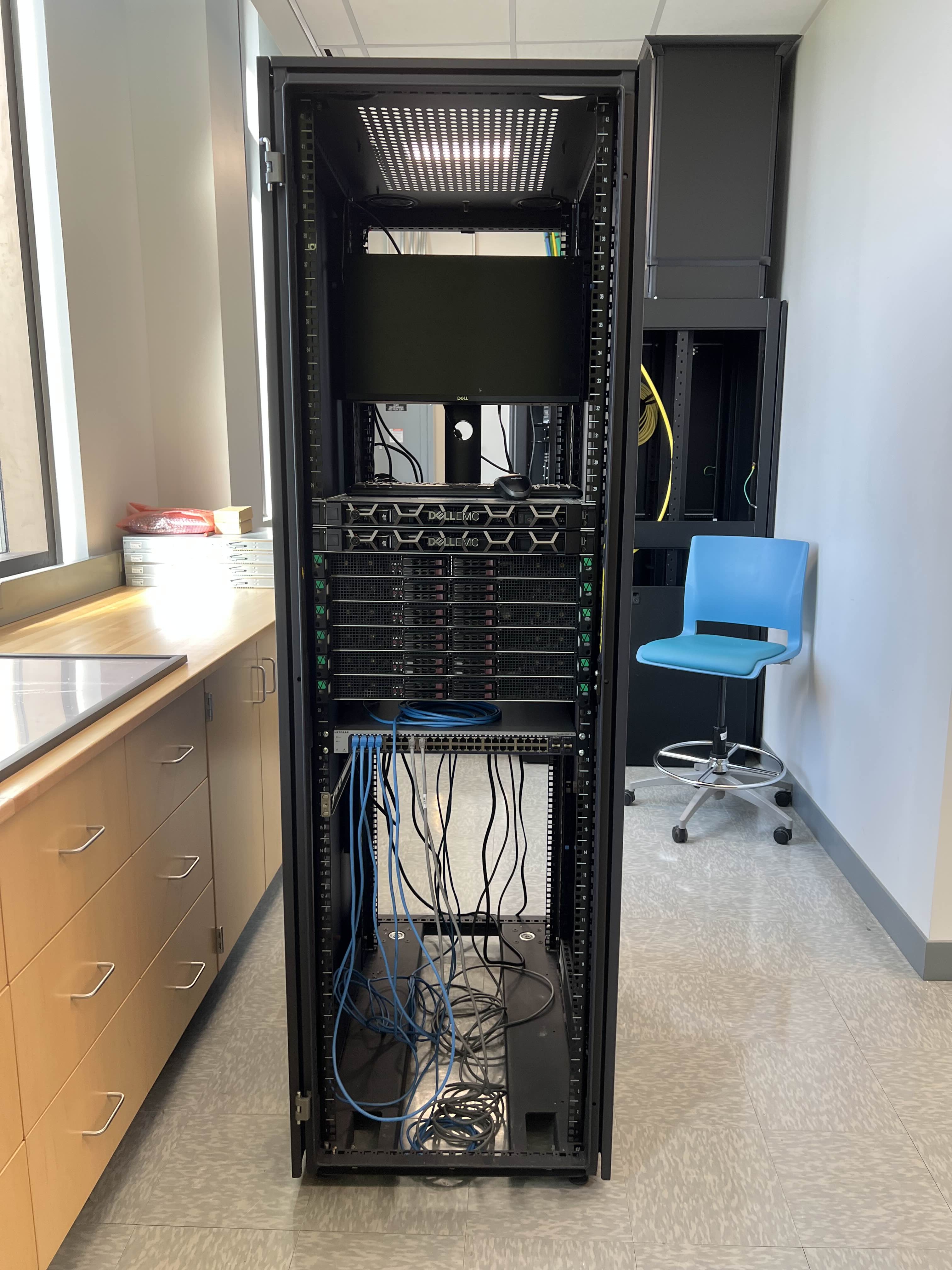

Servers front view — Rack-mounted servers (front view)

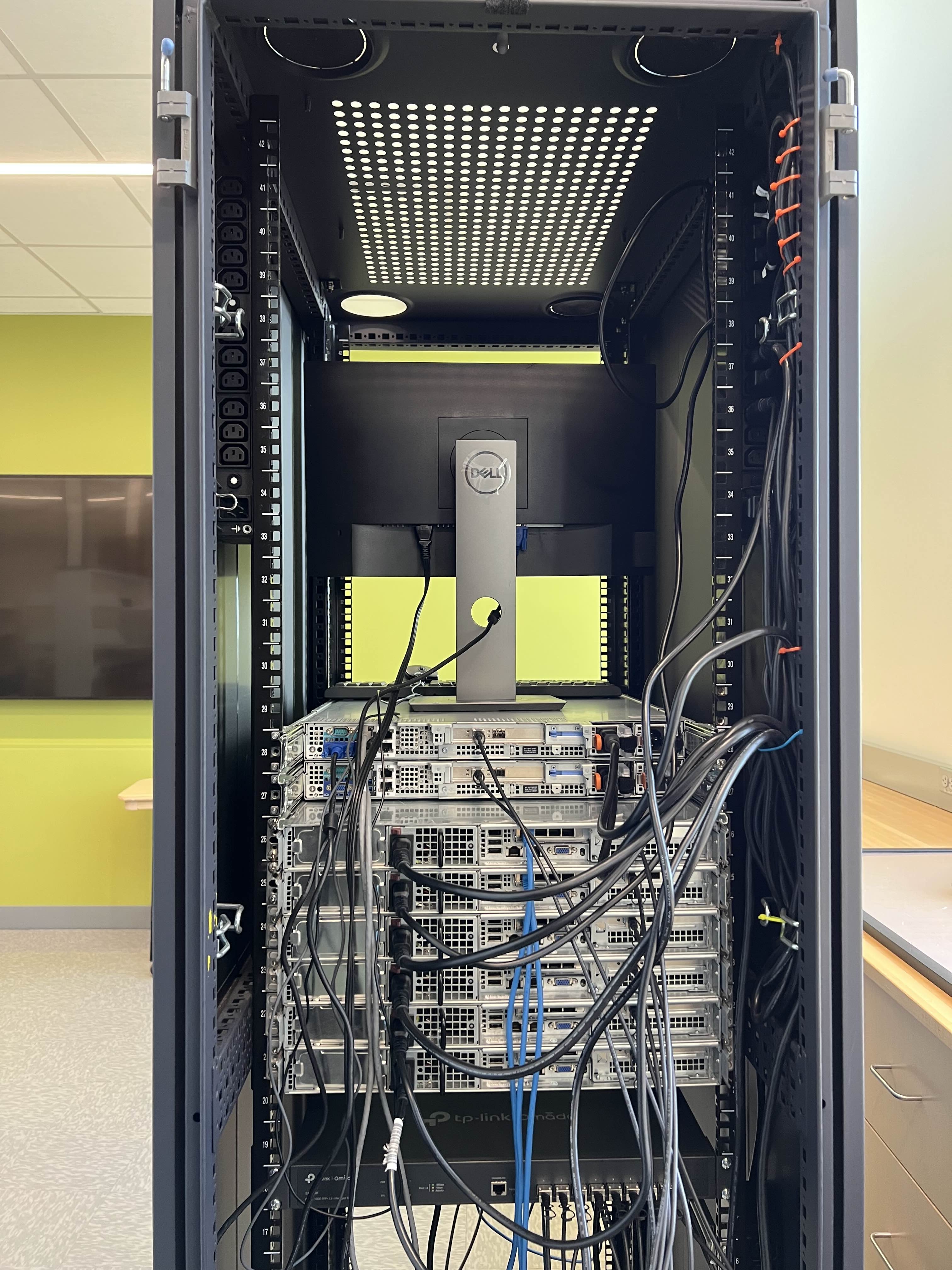

Servers rear view — Rear cabling and power connections

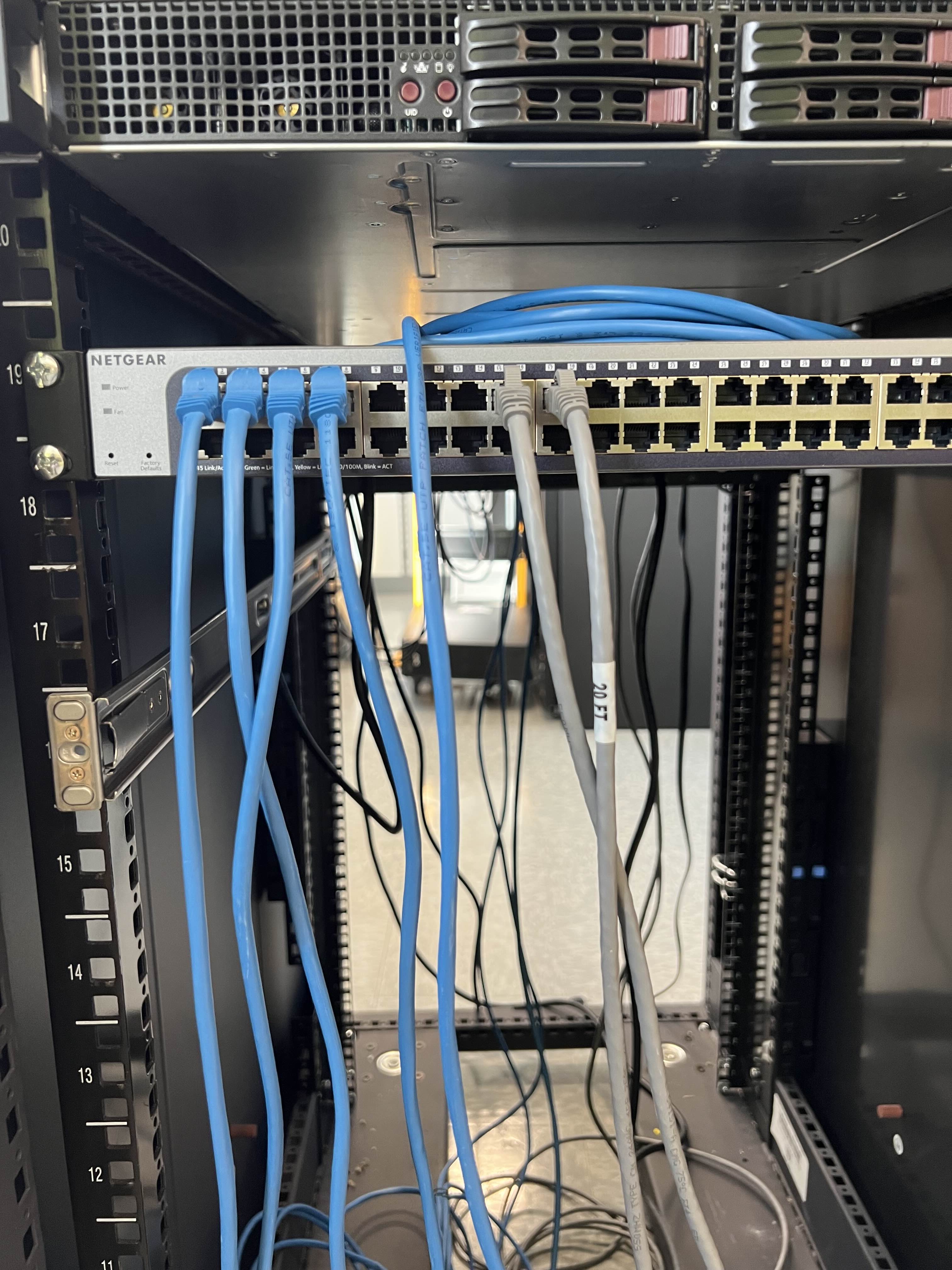

Netgear Switch — This is the switch utilized for the IDRAC functionality

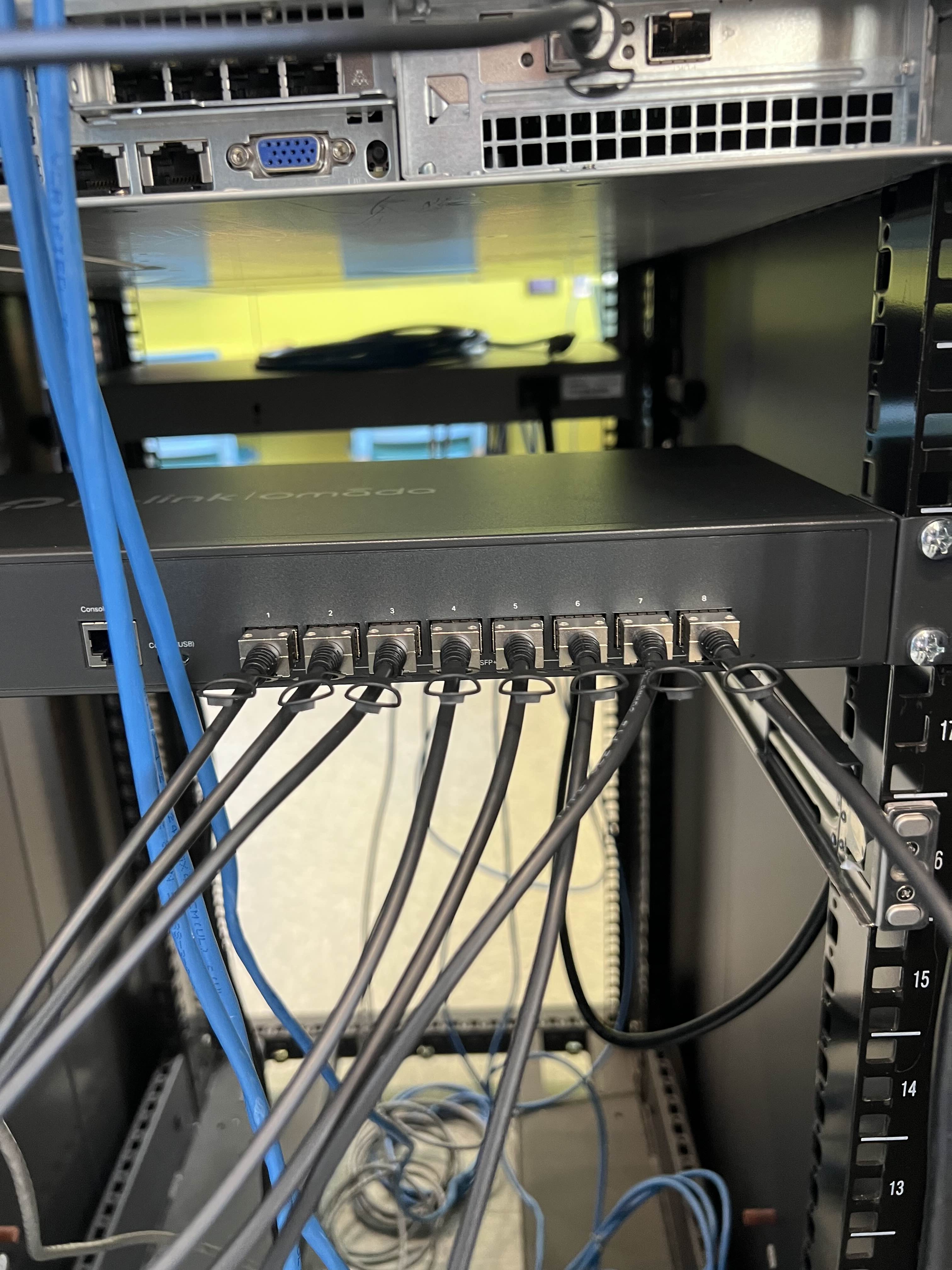

Network switches — This is the 10gbit switch utilized for communication between the servers

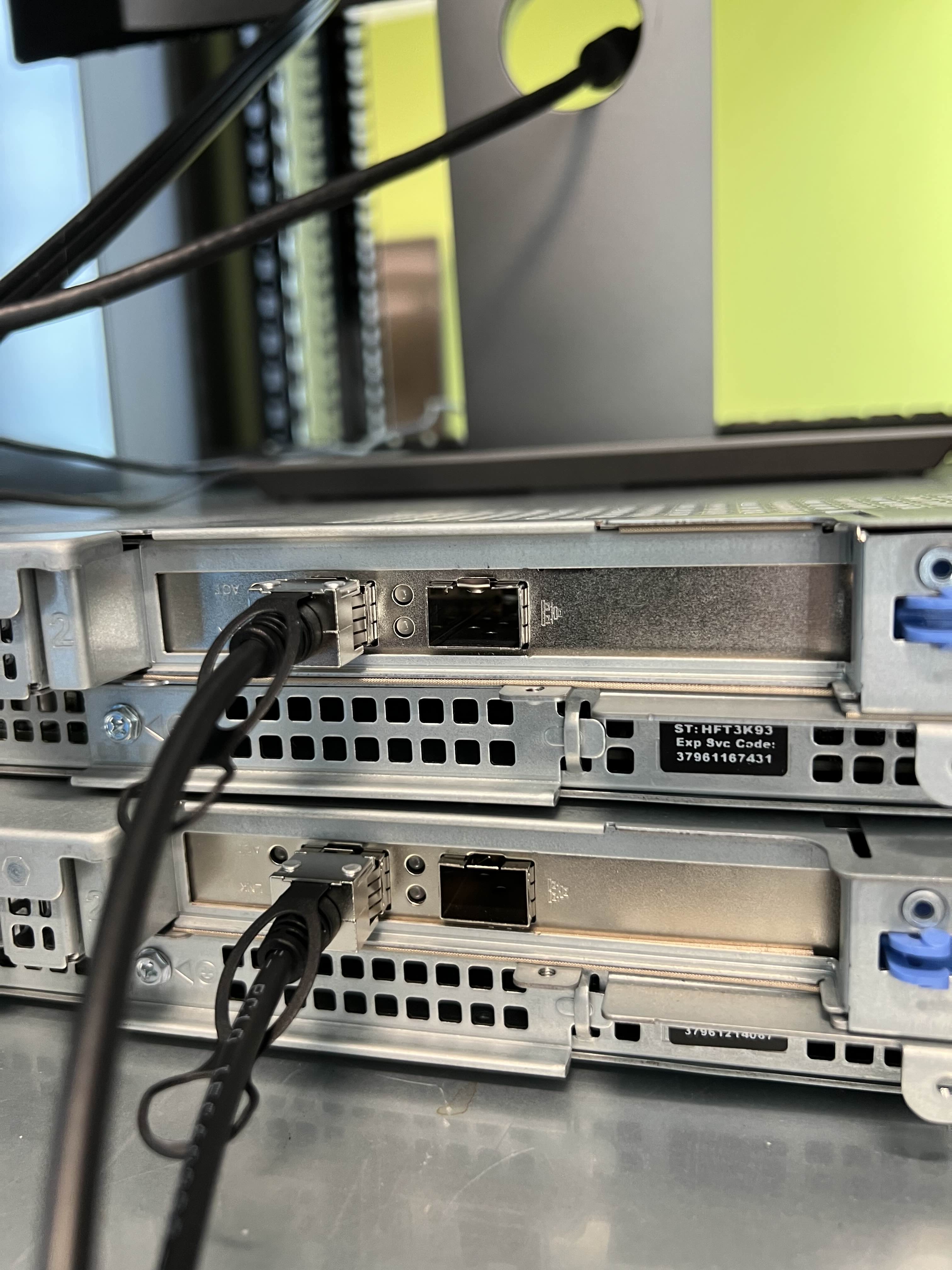

Dell Cabling Example — Example of a 10gbit/s cable plugged into the appropriate port on one of the dell servers
